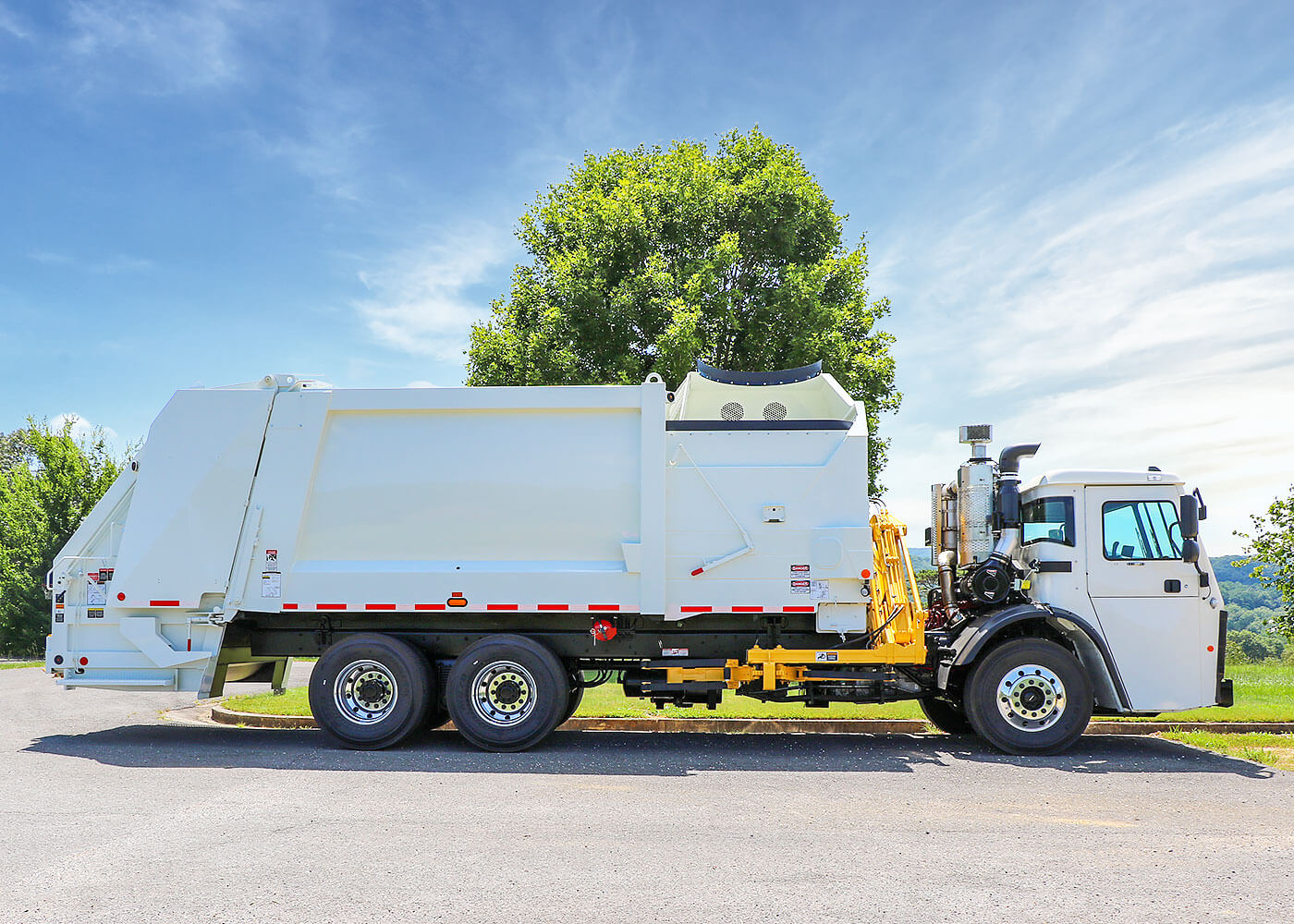

MultiPack® Automated Side Loader

The highly versatile side load garbage truck that can do it all.

The Heil MultiPack refuse collection vehicle can do it all because it combines three precision-engineered products: the durable Heil DuraPack® body, the superior Python® automated arm, and the proven DuraPack 5000 tailgate. These features make the MultiPack the most versatile refuse collection vehicle. If you’re looking for ways to reduce your total capital equipment costs, think MultiPack. It is the only vehicle that can handle rear loader, side loader, and even commercial routes single-handedly.

OPTIONAL 3RD EYE® DIGITAL PACKAGES

Connect your MultiPack side load garbage truck and other vehicles in your fleet for service verification, body/chassis data, fuel tax reporting, and route management. Includes factory installed 3rd Eye Mobile, Radar System, and the ability to connect up to eight cameras.

Learn More

Multipack Sideload Trash Trucks

Heil® MultiPack® Automated Side Loader Standard Features

The patented automated Python arm can reach up to nine feet. Able to lift up to up to 800 pounds, the Python arm features cushioned cylinders for smooth action, saving wear and tear on both the lift arm and the chassis. The Python arm’s unique lift geometry enables the arm to consistently return carts with the lids closed.

The Heil Operate-in-Gear-at-Idle System comes standard on the MultiPack. It is designed to help you finish routes up to 20% faster, saving up to one gallon of fuel per hour while reducing wear on the lift assembly, chassis, engine, and transmission. Plus, it greatly reduces noise — a benefit to operators and customers alike, especially in residential neighborhoods.

Our Service Smart design simplifies routine maintenance, keeping your truck away from the shop and out servicing your customers, making money. The side door provides easy access for common maintenance tasks.

The DuraPack body features a flat, abrasion-resistant steel floor, which eliminates the messy job of cleaning trash buildup out of dirty troughs.

The generous 3.94 cubic yard tailgate hopper can accommodate large items with ease, and requires less cycling on the route.

Our exclusive fully welded, interlaced subframe provides exceptional longevity, while resisting abrasion, corrosion, and salt damage. The body is constructed of 7-8 ga. high tensile strength steel, while the tailgate hopper features 5⁄16″ thick AR400 steel on the floor and 3⁄16″ thick AR400 steel on the sides for superior strength and durability.

The convenient one-handed manual controls located on the tailgate stop, start, or reverse the upper panel or sweep panel at any point in the packing cycle.

Reliable, ergonomic joystick controls deliver smoother performance and enhanced usability. With the AutoLoad system, the operator can reach, grab, lift, dump, and return the arm to the stowed position using only the joystick and two buttons.

The Heil DuraMount Design, used to mount the lift to the chassis frame, reduces the potential for bolt fatigue and provides Service Smart bolt access for easy maintenance.

Made from specially formulated high-strength alloy steel, the Python lift arm’s superior hardened grabber gears virtually eliminate gear wear. The gears are splined to the grabber shafts and can be cycled up to 1,000,000 times with little evidence of wear.

The MultiPack is the one refuse collection vehicle that can single-handedly run rear loader routes.  With an optional rear loader commercial package, it can easily handle commercial containers as well.

Eight-second lift cycle can save up to four seconds per stop – up to one hour per day. This can add up to more than $15,000 in savings per truck, per year! The Python lift arm’s nine-foot reach can slither between cars and other obstacles, making even the most difficult pick-ups possible.

Our exclusive, fully welded, interlaced subframe provides exceptional longevity, while resisting abrasion, corrosion, and salt damage. The body is constructed of 7-8 ga. high tensile strength steel, while the hopper features 5⁄16″ thick AR400 steel on the floor, and 3⁄16″ thick AR400 steel on the sides for superior strength and durability.

The Heil Linkage Packing System is a proven performer. It has no rollers, slides, or slide shoes to wear out. The optimized geometry allows smaller, lighter cylinders to obtain the same packing power and payloads that usually require larger, heavier, and more expensive cylinders.

THE POWER OF Connected collections

Fleets face continued frustration around their ability to connect with their customers. Fleet owners need better tools to communicate with their drivers – to ensure customer needs are met – while also ensuring they are operating efficiently… and safely. Introducing Connected Collections from Environmental Solutions Group companies, Soft-Pak®, Heil®, and 3rd Eye®. Together, we’ve developed Connected Collections to help fleet owners make better decisions faster.

Learn More

MultiPack® Optional Features

Commercial Capabilities

With one of the optional Commercial packages, the MutliPack can easily handle commercial containers. Packages can include a reeving system, winch, or roll bar coupled with a lip and latch kit.

Bayne Thinline® Premium Cart Tippers

Outfit your truck with a single or dual Bayne Thinline premium mobile lifters and reduce the stress and strain on personnel who load the vehicle, and increase route efficiency.

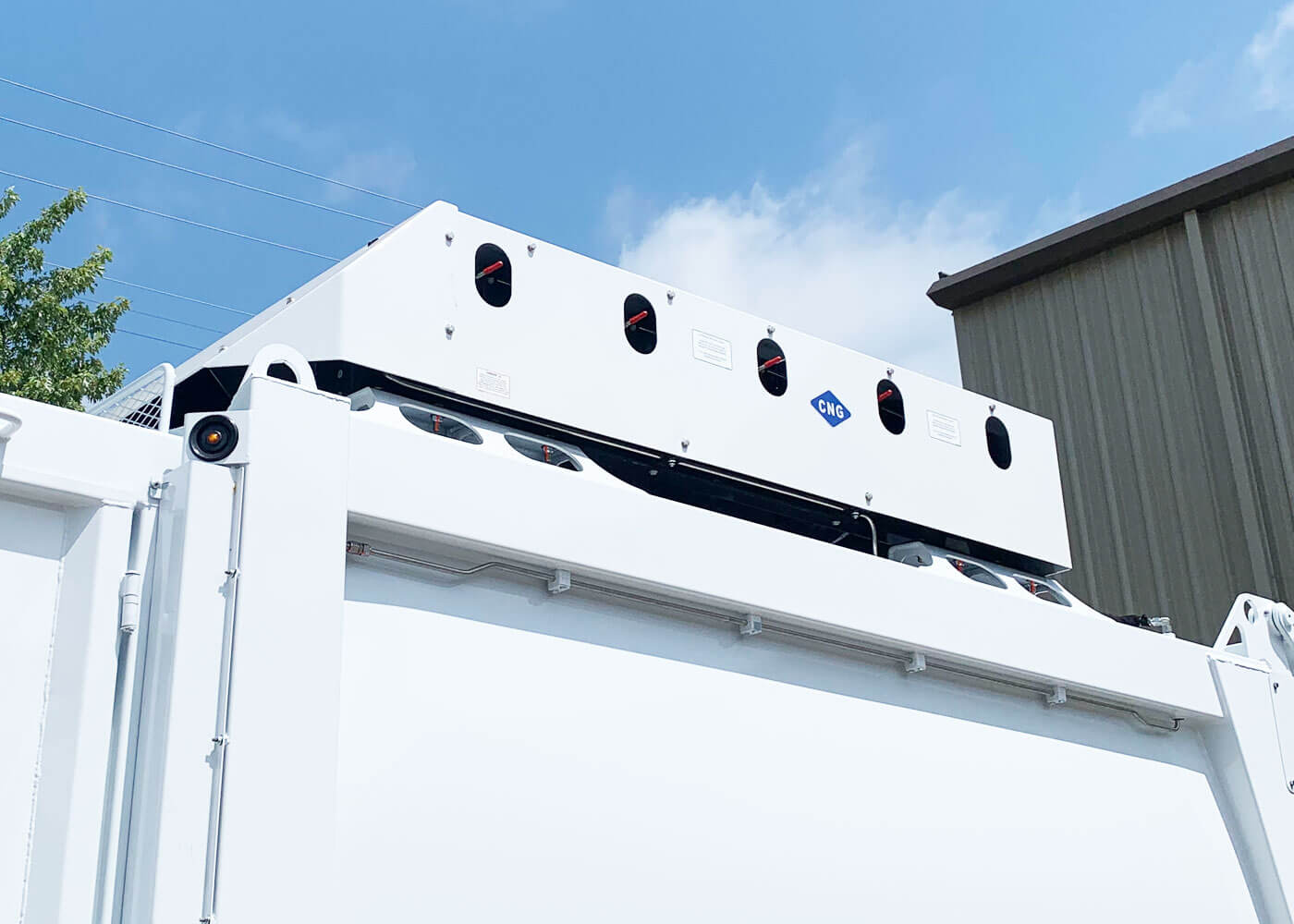

Add Body Rooftop CNG Storage

This optional system enables your CNG refuse fleet to deliver the same productivity you would expect from a diesel unit while saving money with clean, domestic, compressed natural gas as fuel.

Genuine OEM Garbage Truck Parts

Heil Certified OEM parts are the most reliable replacement parts for Heil refuse collection vehicles. They’re made following the exact specifications and production processes on the same assembly lines as the parts originally installed on the bodies. This means that they fit perfectly every time. Heil uses only the highest-quality materials for parts that last – minimizing costly downtime.
LEARN MORE

Nexteligence Garbage Truck Technician Training Program

Nexteligence© Connected-Tech Training, where knowledge and technology meet. Designed to increase the knowledge and capabilities of Service Technicians for the Heil Product Line.

Get More Info

Ready to get started with the MultiPack®?
